SUMO-KING: Air Tools

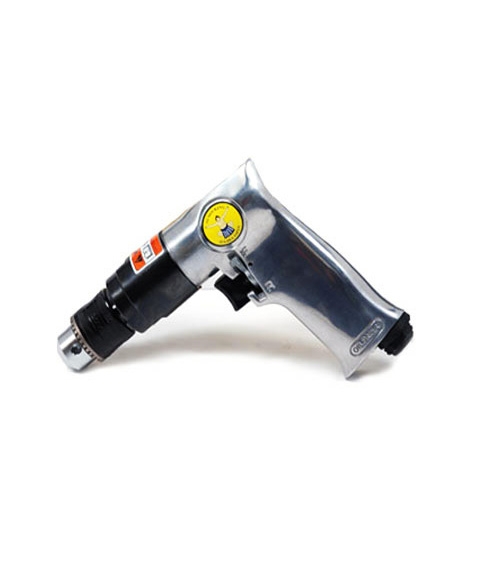

Sumo King Air Tools

High efficient output power.
Planetary gear design for durable.
Forward / reverse adjust for more flexible and comfortable.

Model	AD-1130
Gear Type	Planetary Gear
Free Speed	1,800 r.p.m
Chuck Capacity	Ø 10mm (P/No.16)
Air Pressure	90 psi (6.2bar)
Comfortable Rubber Grip

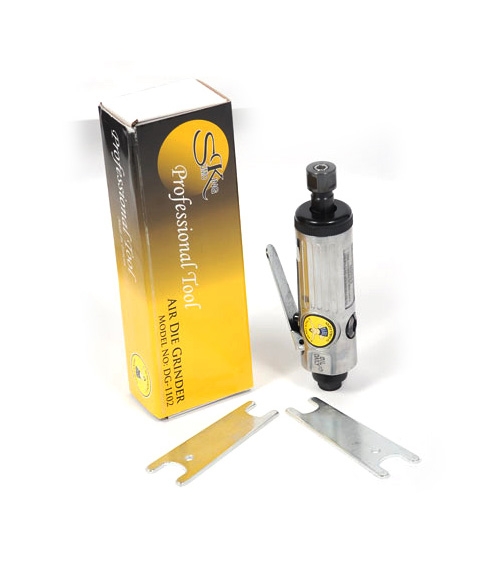

Sumo King Air Die Grinder

Grinding for inside and outside.
All kind metal, stone engraving and grinding
High speed accurate rotating.
Low vibration

Model	DG1102
Free Speed	25,000 r.p.m
Standard Collect Size	6 mm
Avg. Air Consumption	4 cfm / 133 L/min
Air Inlet / Air Hose	1/4″ PT / I.D. 3/8″
Overall Length	143 mm
Net Weight	0.53 kg
Air Exhaust	Front

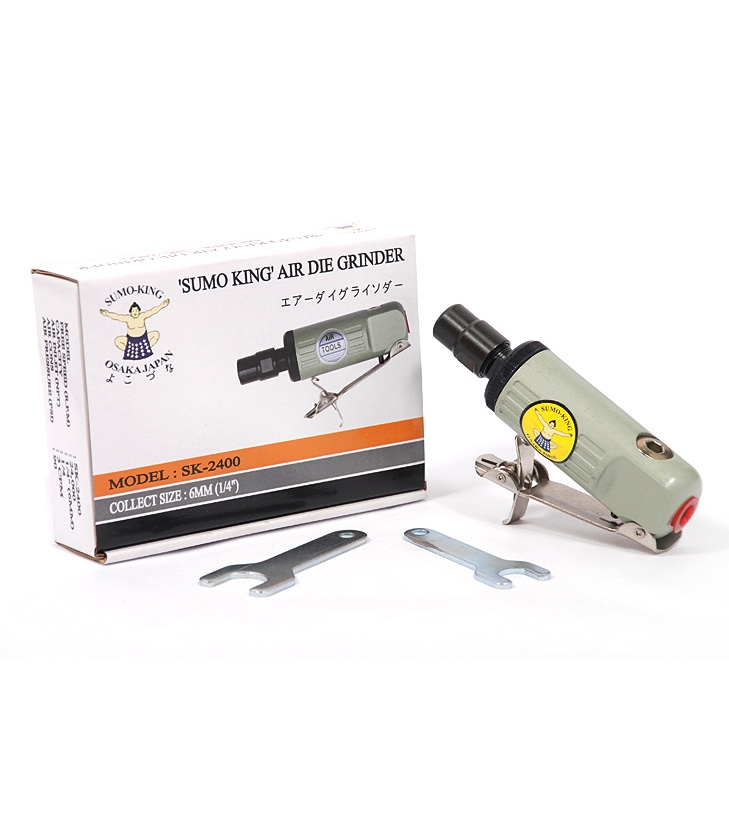

Sumo King Air Die Grinder

Model	2400
Collect Size	6MM(¼")
Free Speed (R.P.M.)	24,000
Air Inlet (NPT)	¼
Air cons	3CFM
Air Pressure (PSI)	90

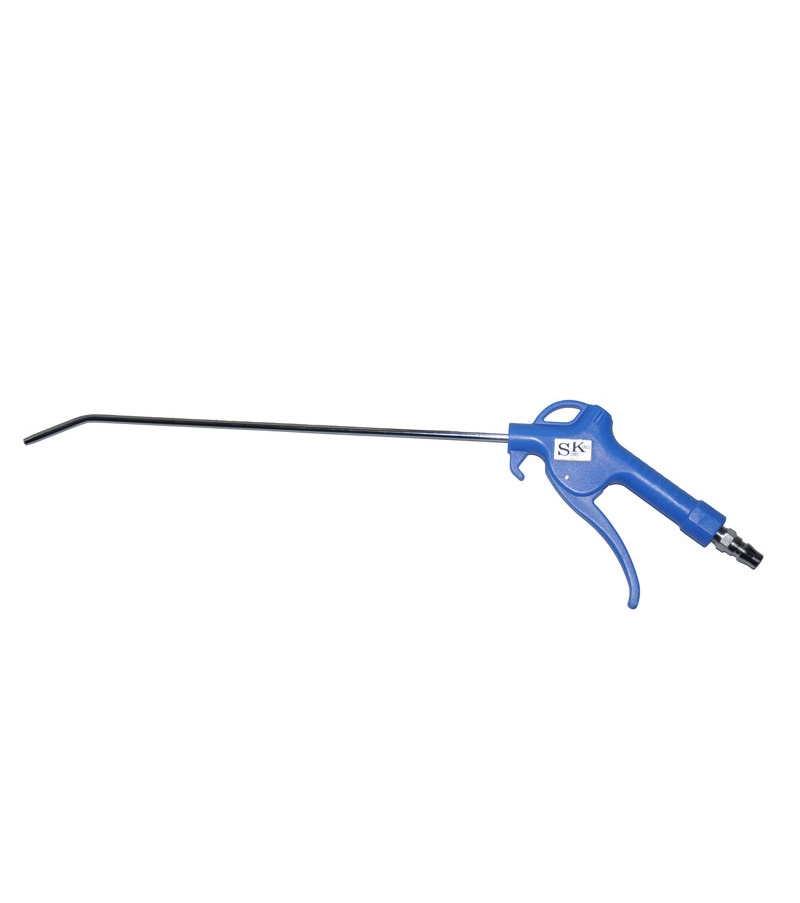

Sumo King Air Blow Gun

Lever action air blow gun makes cleaning and dusting easy.
Fast way to air-clean equipment and machinery of all kinds.

Model	ABG4	ABG13
Description	4" Sumo King Air Blow Gun	13" Sumo King Air Blow Gun
Body Material	Plastic
Working Pressure	90-120 psi
Sound Pressure	85-88 db
Air Con.	90 psi
CFM	1/4" Hose – 13CFM, 3/8" Hose – 15CFM
Air Inlet Thread	1/4"

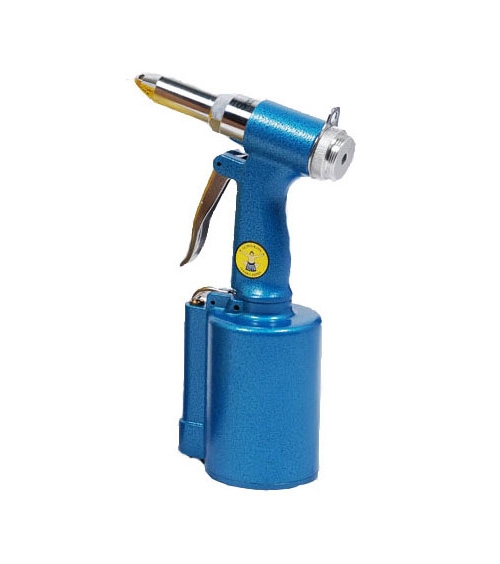

Sumo King Air Hydraulic Riveter (3/16¨)

Ergonomic design, flexible for operation.
Offers an instant solution to many of your design.
For sheet metal, body shop' general maintenance.

Model	AR-2200
Stroke Length	9/16" (14mm)
Setting Capacity	3/16" 4.8mm)
Traction Power	375 kg (1870 Ibs)
Air Pressure	90 psi (6.2bar)

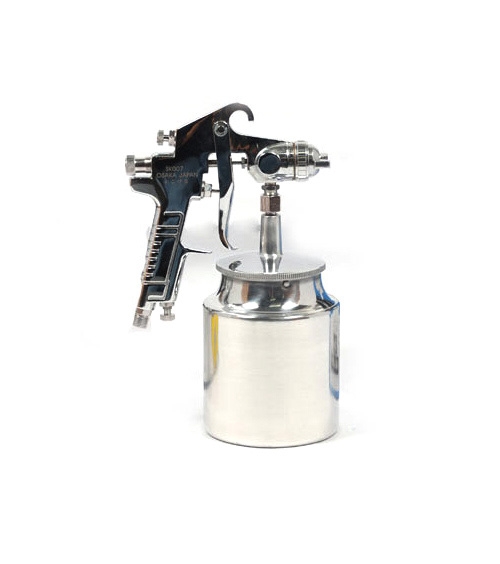

Sumo King Professional Spray Gun c/w Cup

It is typically used for covering large surfaces with an even coating of liquid.
Spray guns can be either automated or hand-held and have interchangeable heads to allow for different spray patterns.
Single colour aerosol paint cans are portable and easy to store.

Model	Spray Nozzle (mm)	Cap Capacity (cc)	Gravity
SG15	1.5	1000	-
SG15G	1.5	400
SG20	2.0	1000	-
SG20G	2.0	400
SG25	2.5	1000	-

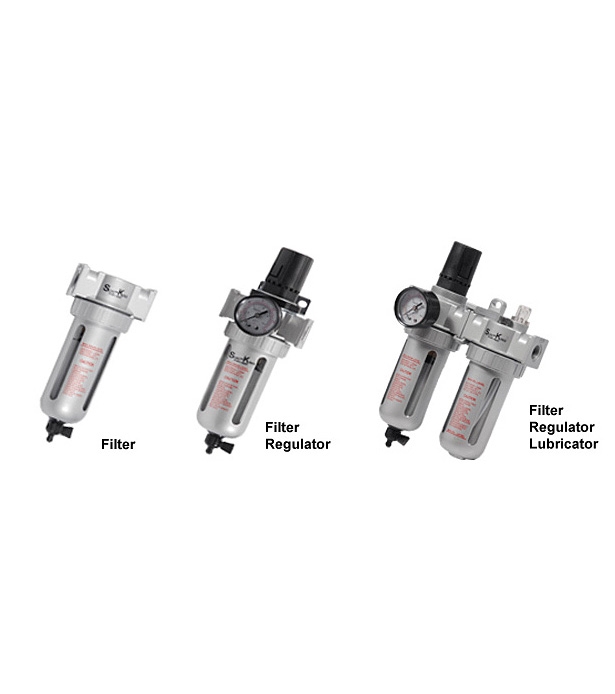

Sumo King Filter Regulator Lubricator Line

Filter, regulator, lubricator (FRL) assemblies are pre-packaged or modular assemblies of common configurations of air filters, regulators, lubricators, and gauges. Important specifications to consider when searching for filter, regulator, and lubricator assemblies include regulator type, media, performance specifications, adjustment control, connectors or pipe size, body material, features, and environmental parameters.

Model	Size	Description
Model	Size	Filter	Regulator	Lubricator	Auto Drain	High Presure (200 psi)
F802	1/4"
F802A	1/4"
FR802	1/4"
FR802A	1/4"
FRL802	1/4"
F803	3/8"
F803A	3/8"
FR803	3/8"
FR803A	3/8"
FRL803	3/8"
FRL803A	3/8"
F804	1/2"
F804A	1/2"
FR804	1/2"
FR804A	1/2"
FRL804	1/2"
FRL804A	1/2"
FR833	3/8"
F834	1/2"
FR834	1/2"

Sumo King Air Impact

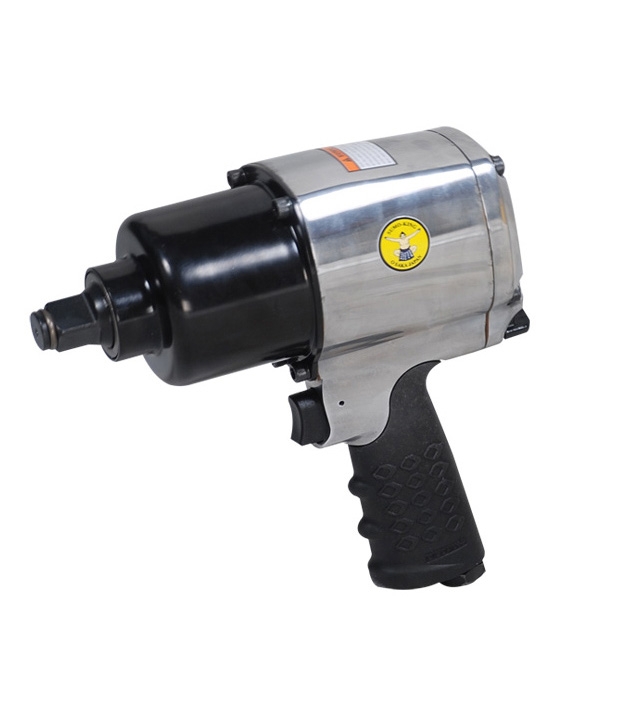

Sumo King Air Impact Wrench

Used in many industries, such as automotive repair, heavy equipment maintenance, and product assembly, major construction projects, and any other instance where a high torque output is needed.

Model	IW-0034
Description	Sumoking 3/4 Twin Hammer Air Impact Wrench
Max.Torque	1200 ft.lb
Weight	5.8 kg

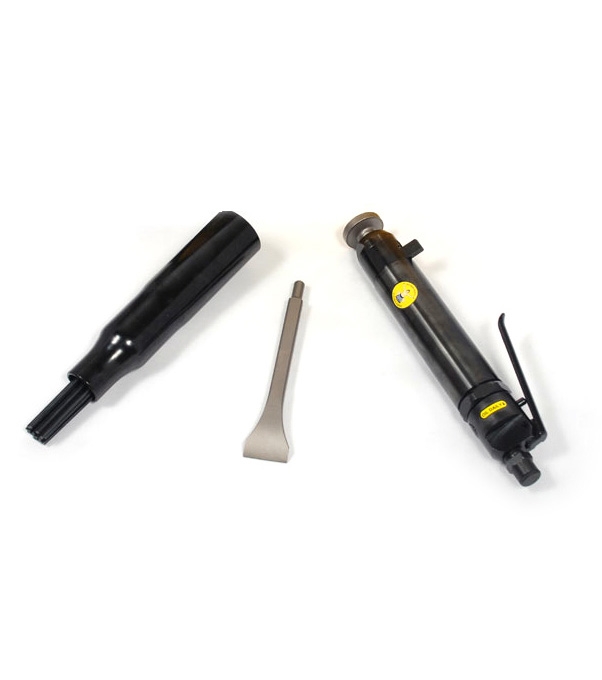

Sumo King Air Needle Scaler

Attach air needle scaler to your compressor air line and watch as steel needles vigorously vibrate to easily remove weld flux, rust, scale, paint, cement and other residues from hard, durable, irregular surfaces.

Model	414HV
Description	Sumoking Air Needle scaler & Flux chipper
Needle (mm x pc)	3 x 19
Stroke speed	4,400 (bpm)
Weight	2.8kg
Length	410mm
Sound Pressure	96 (dBA)
