Sumo King Battery Charger
-

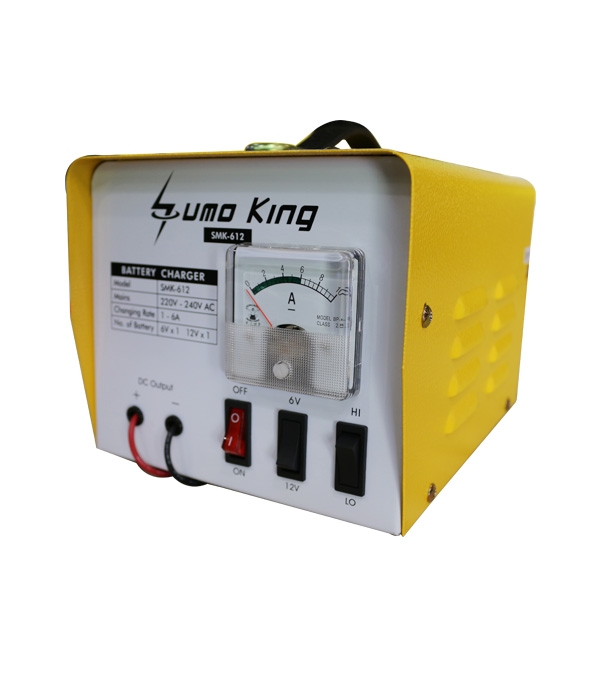

BC612
BC612
Model BC612 Charging Voltage (VDC) 6V – 12V Charging Rate (A) 6A Dimension (mm) WxDxH 170 x 230 x 150 Weight (Kg) 3.05 View video
-

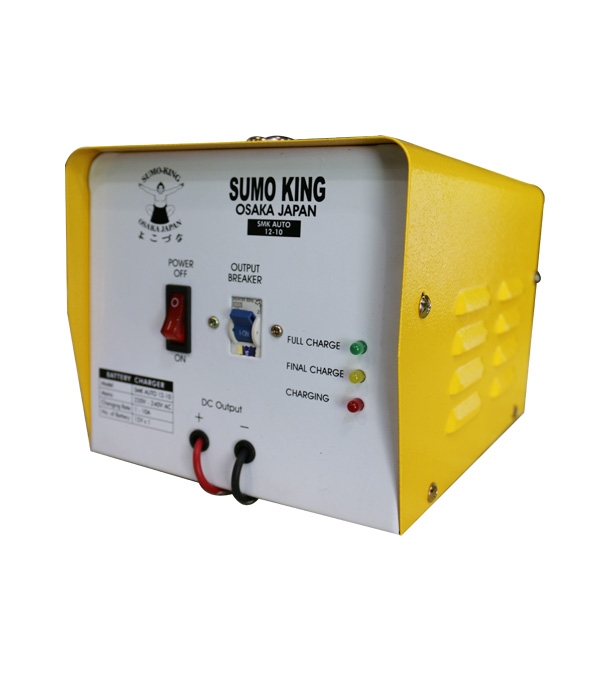

BC1210A
BC1210A
Model BC1210A Charging Voltage (VDC) 12V Charging Rate (A) 10A Dimension (mm) WxDxH 170 x 230 x 150 Weight (Kg) 4.5 View video
-

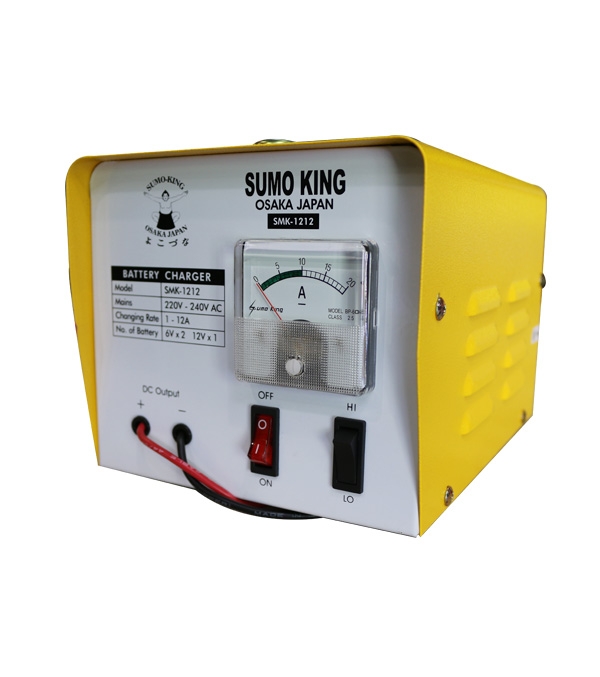

BC1212
BC1212
Model BC1212 Charging Voltage (VDC) 12V Charging Rate (A) 12A Dimension (mm) WxDxH 170 x 230 x 150 Weight (Kg) 4.45 View video
-

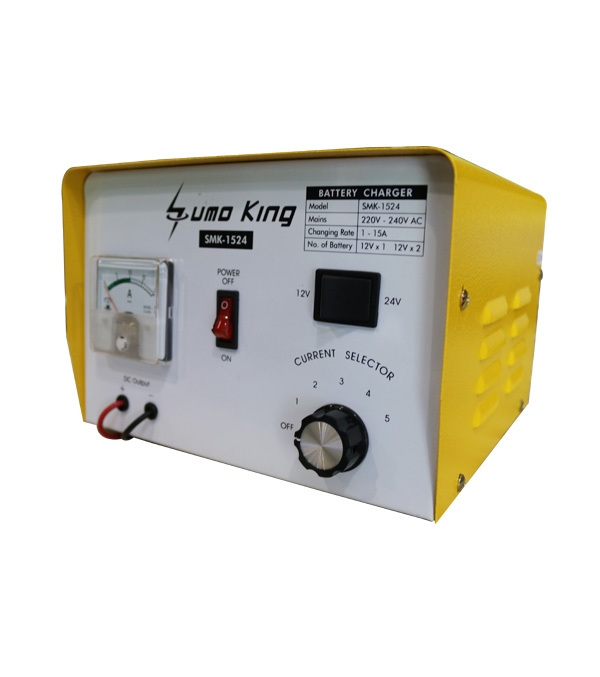

BC1524
BC1524
Model BC1524 Charging Voltage (VDC) 12V – 24V Charging Rate (A) 15A Dimension (mm) WxDxH 160 x 235 x 150 Weight (Kg) 5 View video
-

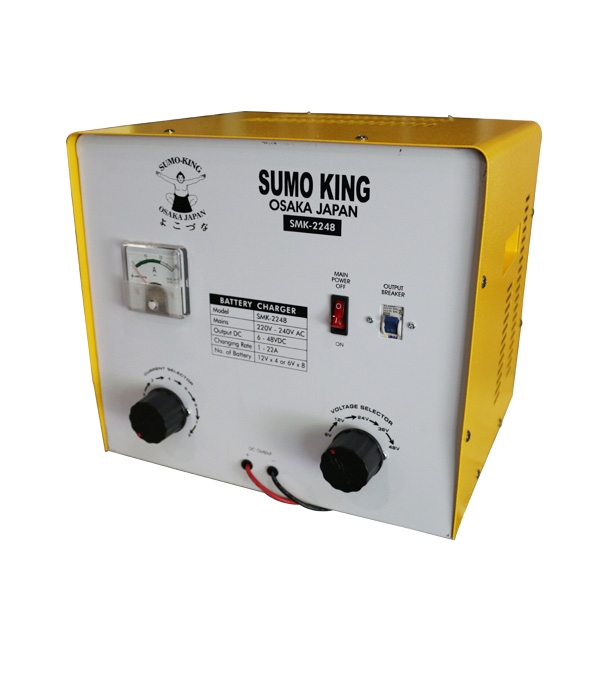

BC2248
BC2248
Model BC2248 Charging Voltage (VDC) 6V – 48V Charging Rate (A) 20 Dimension (mm) WxDxH 390 x 385 x 360 Weight (Kg) 25 View video
-

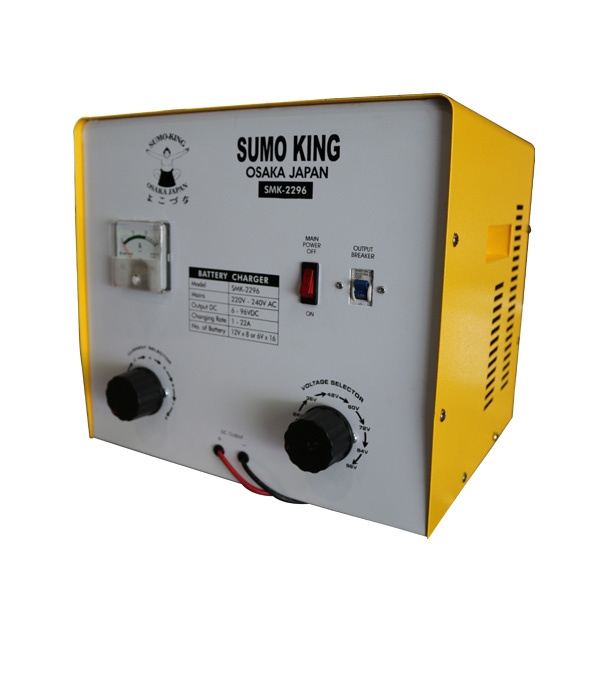

BC2296
BC2296
Model BC2296 Charging Voltage (VDC) 6V – 96V Charging Rate (A) 20A Dimension (mm) WxDxH 390 x 385 x 360 Weight (Kg) 30 View video
-

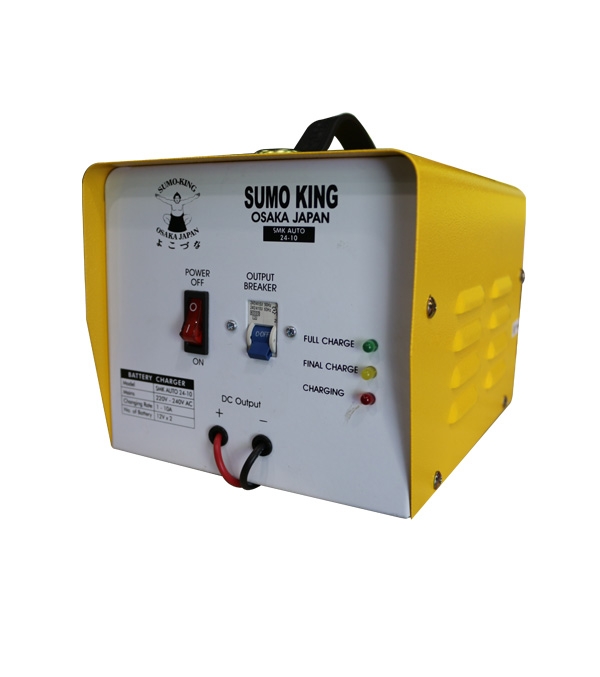

BC2410A
BC2410A
Model BC2410A Charging Voltage (VDC) 24V Charging Rate (A) 10A Dimension (mm) WxDxH 170 x 230 x 150 Weight (Kg) 4.5 View video
-

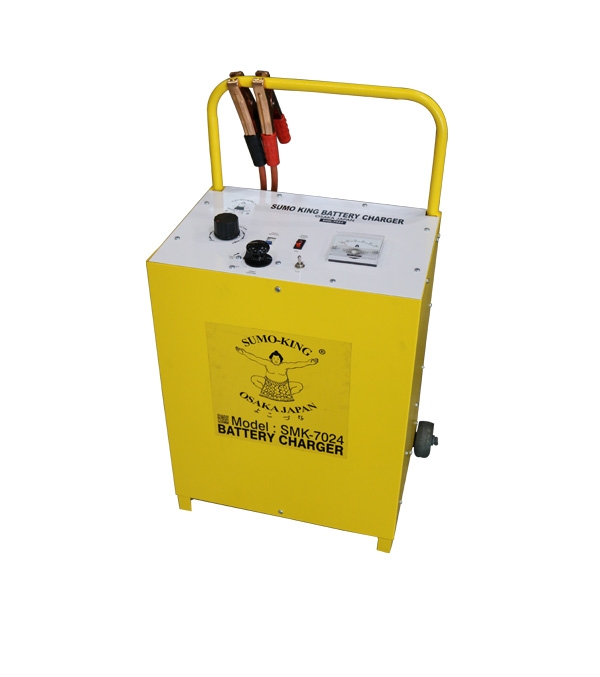

BC7024
BC7024
Model BC7024 Charging Voltage (VDC) 12V – 24V Charging Rate (A) 40-70A Dimension (mm) WxDxH 533.4 x 431.8 x 304.8 Weight (Kg) 45 View video
Specifications
SUMO-KING battery chargers are specially designed to cater for charging multiple units of battery each time [up to 8 pcs of 12V Batteries or 16 pcs Batteries] connected in series connection. This is made possible with us of flexible multiple voltage and current selection's Dial to provide various combinations of charging conditions to suit individual requirement.
Every unit's casing are made of heavy gauge steel plate complete with epoxy powder coated paint finishing to enhance lifespan for rough usage environment. The battery Charger comes with two different designs, either with Fixed or Multiple Voltage / Current selections.
Features
| Rated Supply Voltage | : 220 ~ 240V AC 50Hz |
| Battery Type | : 6V and 12V Lead Acid Battery : 12V Calsium & Calsium MF Battery |
| Number of Batteries | : 6V Battery – 1 to 20 pieces (maximum) : 12V Battery – 1 to 10 pieces (maximum) |
| Charging voltage | : Fixed range – 6V and 12V -12V and 24V : Multiple range – 6V ~ 48V – 12V ~ 24V or 120V |
| Charging Current | : Maximum range – 6A, 12A, 15A, 22A, 30A and 50A |
| Battery Arrangement (Above 2 units) | : Series connection only |
| Casing | : High quality steel plate with epoxy powder coated finishing |
| Safety Features | : Fast blow glass fuse : MCB over current protection |
| Application | : Suitable for automobile Lead Acid battery charging & Maintenance Free battery charging |
| List of chargeable Batteries Models | : NS60/L, 46B24R/L, NS40ZL, NS70/L, N70Z/ZL, NX120-7/L, N 100, N 120, N 150, N200, N250Z, DIN55, DIN66, DIN88, etc |
