Dacho

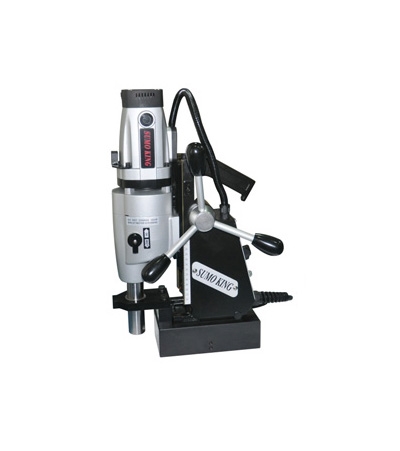

• Sumo King Powerful, Portable Magnetic Drilling Machines
  •

  Sumo King Powerful, Portable Magnetic Drilling Machines

  • Suitable for various type of steel applications.
  • On-site hole drilling in steel plates.
  • Bridge construction and shipbuilding.
  • "I" steels, shaped bars, framework and other machinery.
  • Steel reinforcements and construction material.

  Model	MD50
  Power Input	1400W
  Voltage	240V
  No-Load Speed RPM Hole Cutting	460/800
  Capacity MM	Ø12-50
  Magnet Dimensions	200 x 100 mm
  Weight	19 KG

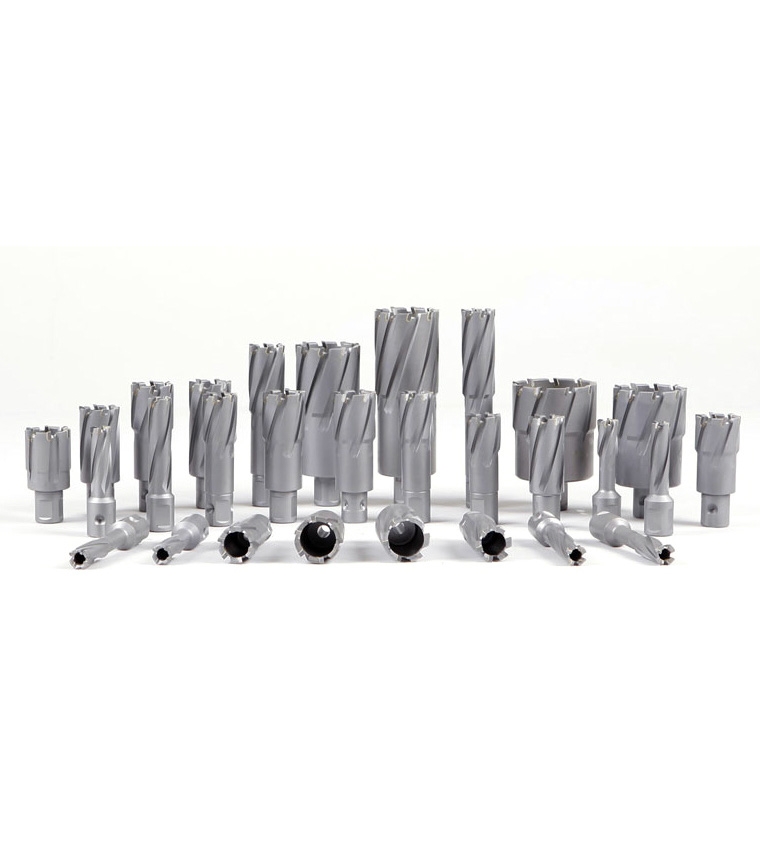

• Cutter with Universal Shank (Optional Accessories)
  •

  Cutter with Universal Shank (Optional Accessories)

  • Universal shank for various magnetic drills
  • Select special-purpose carbide tips with multi-cut geometry for ply-cutting and lower friction damage of tips and improved performance of ships removal
  • Applicable to hole cutting and process of annular groove on various magnetic drills and press.
  • Superior Quality
  • Durable in Use
  • Dependable Performance
  • Complete in Specifications

  Model	DNTC-3	Diameter (mm)	Max Depth (mm)
  TCT1335	30130 (13*35)	13	35
  TCT1435	30140 (14*35)	14	35
  TCT1535	30150 (15*35)	15	35
  TCT1635	30160 (16*35)	16	35
  TCT1735	30170 (17*35)	17	35
  TCT1835	30180 (18*35)	18	35
  TCT1935	30190 (19*35)	19	35
  TCT2035	30200 (20*35)	20	35
  TCT2135	30210 (21*35)	21	35
  TCT2235	30220 (22*35)	22	35
  TCT2335	30230 (23*35)	23	35
  TCT2435	30240 (24*35)	24	35
  TCT2535	30250 (25*35)	25	35
  TCT2635	30260 (26*35)	26	35
  TCT2735	30270 (27*35)	27	35
  TCT2835	30280 (28*35)	28	35
  TCT2935	30290 (29*35)	29	35
  TCT3035	30300 (30*35)	30	35
  TCT3235	30320 (32*35)	32	35
  TCT3335	30330 (33*35)	33	35
  TCT3435	30340 (34*35)	34	35
  TCT3535	30350 (35*35)	35	35
  TCT3635	30360 (36*35)	36	35
  TCT3835	30380 (38*35)	38	35
  TCT4035	30400 (40*35)	40	35

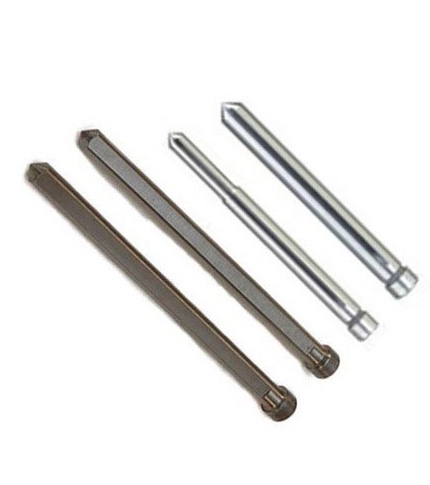

• Pilot Pin for 35mm Length Annular Cutter
  •

  Pilot Pin for 35mm Length Annular Cutter

  Model	Size	Diameter (mm)	Max Depth (mm)
  PP7X50	6.34*90	12-17	90
  PP8X50	7.98*90	above 18	90

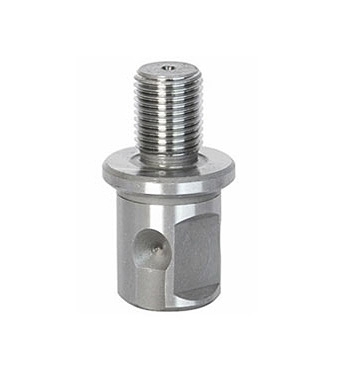

• Hexagon Screws
  •

  Hexagon Screws

  Model	Description	Diameter (mm)	Max Depth (mm)
  MDA01	DZCU-01 Universal / 1/2-20 UNF	N/A	N/A
